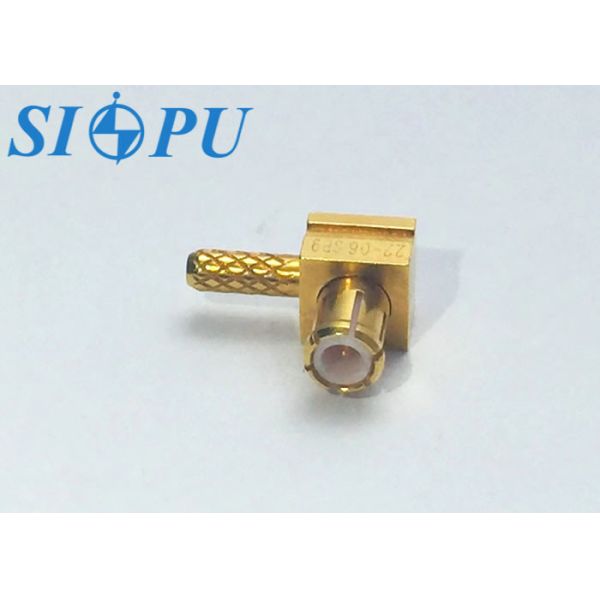

MCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U Cable

  • 1
  • 2

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 50

Payment Terms : L/C, T/T, Western Union

Model Number : MCX-JW2-3

Certification : ISO9001-2017, RoHS, CE

Packaging Details : master carton

Price : Discuss

Delivery Time : 5-8Weeks

Product name : MCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U Cable

Gender : Male

Type : Right angle

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

MCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U Cable

Product Overview

MCX series RF coaxial connectors feature a compact plug-in interface design, offering small size, light weight, excellent electrical performance, and high reliability. They are widely used in applications with strict space constraints and high-frequency performance requirements.

Applications

Base station equipment

Transmission systems

Instrumentation

GPS modules

Antennas

Product Features

Right-angle (bent) male connector

Compatible with RG178/U coaxial cable

Compact and lightweight design

Quick and easy connection

Stable and reliable electrical performance

Product Specifications

MCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U Cable

Important Technical Parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-6GHz

Dielectric withstanding voltage

 750V

VSWR

 ≤1.4

Insulation resistance

 ≥1000MΩ

Insertion loss

≤0.1 √F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Brass, gold plating

Insulating medium

PTFE

Outer conductor

Brass+Beryllium copper, gold plating

 / /

Product Image Gallery

MCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U CableMCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U Cable
